High Stable Etching Tool Stone Carving Diy Cnc Machine For Marble/ Jade
Introduction of Diy Cnc Machine
Diy Cnc Machine PEM-6090C adopts high-power main axis with high speed and low noise. Widened and thickened column can handle 15mm natural marble. Diy Cnc Machine has excellent performance, convenient operation, powerful software, which ensures wide-range application. Wuhan Perfect Laser Co., Ltd. provides 24-hour after-sales service and other technical support you need.
Application of Diy Cnc Machine
Diy Cnc Machine PEM-6090C is suitable for jade, ceramic tile, glass, stone tablet, lettering, carving, crystal, glass, ceramic, bamboo, plaque, signage, chemical synthetic board, cement products, hard plastic , such as marble, granite, bluestone, etc. It can be used in the stone industry and inscription industry.
Features of Diy Cnc Machine
1. The bed is made of cast iron, which is firm and non-deformable. It has good rigidity, high precision, reliable performance and durability.
2. Special waterproof structure offers better protection for guide rail and rack.
3. High-power main axis motor provides high cutting force and high efficiency, widened and thickened beams and columns, which are suitable for natural marble carving of higher thickness.
4. The application of high-performance drives ensures high speed and high precision.
5. The functions such as power-off memory, power-off continuation and processing time prediction ensure processing in case of accident.
6. Excellent tool cooling system effectively improves tool life.
Specifications of Diy Cnc Machine
| Model | PEM-6090C |
| Working area | 600*900mm |
| Machine Volume | 3200*2020*1250mm |
| Main axle power rate | 2.2/3/4.5/5.5KW(optional) |
| Main axle rotating speed | 6000-24000 rpm/min |
| Max.Working speed | 8000mm/min |
| Feeding height | 200mm |
| Engraving tools | 3.175/4/6/12.7mm |
| Re-positioning Accuracy | 0.02mm |
| Supported File Format | DXF,PLT,G code,MMG,U00,NC,ENG |
| Power | AC220V(380V)/50HZ (optional:AC110V/60HZ ) |
| Weight | 1600 kgs |

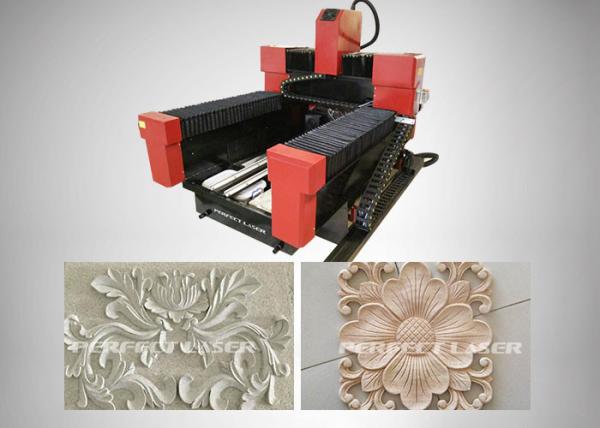

Sample Show of Diy Cnc Machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
